138-960MHz Din Female Low PIM 4 Way Power Divider

Name: 138960MHz Din Female Low PIM 4 Way Power Divider
Brand: Vinncom
Price: 1 USD

Quality 138-960MHz Din Female Low PIM 4 Way Power Divider wholesale

Brand Name : Vinncom

Model Number : VN-PD-013096-OP4

Certification : ROHS ISO9000

Place of Origin : China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : D/A, L/C, D/P, T/T

Supply Ability : 1500pcs per day

Frequency : 138-960MHz 130-960MHz

Connector : 4.3-10 Mini DIN Female

Color : Customized

OEM/ODM : Acceptable

Application : DAS IBS Public Safety

ROHS : Compliance

Design : Wide Band

Contact Now

138-960MHz 4.3-10 Mini DIN Female 4 Way Wilkinson Power Divider For Public Safety DAS IBS

Good VSWR at all ports
Less Insertion Loss
Low split loss

Part Number	VN-PD-013096-OP4
Operating Frequency ( MHz )	138-960
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤7
Isolation (dB)	≥18
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	50(2w as combiner)
Peak Power (Watt, max)	200
Dimension (mm)(L×W×H, excl connector)	156.3×151.2 × 29
Net Weight (g)	1500 ± 20
Packing Dimensions (mm,L×W×H)	210 × 170 × 65
Packing Carton Size (mm,L×W×H)	530 × 440 × 80
ROHS Compliance	Yes

138-960MHz Din Female Low PIM 4 Way Power Divider

Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.

Product Tags:

138-960MHz Low PIM 4 Way Power Divider

IBS 960MHz 4 Way Power Divider

IBS IP65 4 way splitter

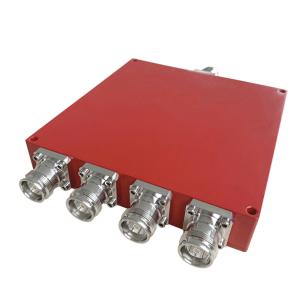

138-960MHz Din Female Low PIM 4 Way Power Divider Images
